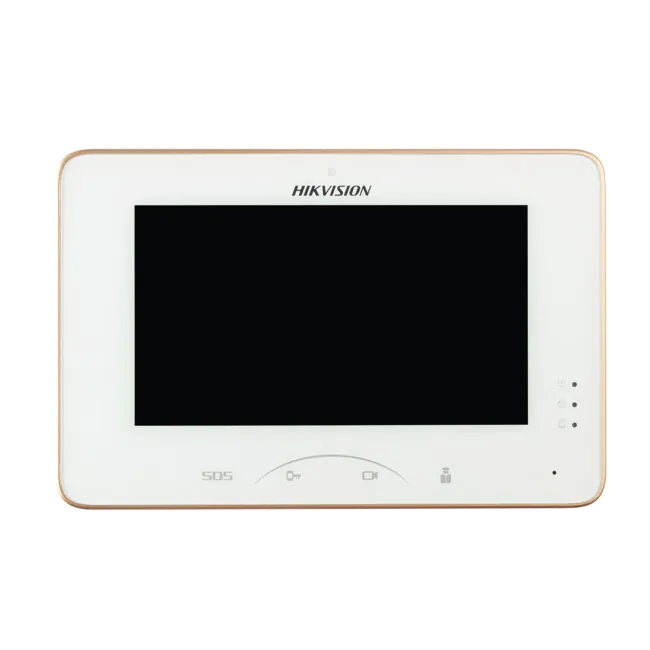

Video Porteiro Hikvision Ds-Kh8300-T

Informações Técnicas

System Parameters

Processor: High-Performance Embedded SOC Processor

Operation System: Embedded Linux Operation System

Memory: 256M

Display Parameters

Display Screen: 7-Inch Colorful TFT LCD

Display Resolution: 1024 × 600

Operation Method: Capacitive Touch Screen, Touch Key

Operation interface: Flattened UI Operation Interface

Audio Parameters

Audio Input: Built-in Omnidirectional Microphone

Audio Output: Built-in Loudspeaker

Audio Compression Standard: G.711 U

Audio Compression Rate: 64 Kbps

Audio Quality: Noise Suppression and Echo Cancellation

Network Parameters

Ethernet: 10/100 Mbps Self-Adaptive Ethernet

Network Protocol: TCP/IP, RTSP

Alarm Parameters

Alarm Input: 8-ch Alarm Input Sensor

Device Interfaces

Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

RS-485: 1 RS-485 Half-Duplex Port

I/O Output: 2

TF Card (micro SD card): TF Card, Support Max. 32GB

General

Power Supply: 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)

Power Consumption: ≤10 W

Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE

Working Temperature: -10° C to + 55° C (14° F to 131° F)

Working Humidity: 10% to 90%

Dimensions(L × W × H): 217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
